Kanban 1500x1230 mm tilted

STATIONARY - Picking side TILTED

Kanban 1500x1230 mm tilted
Kanban 1500x1230 mm tilted
Kanban 1500x1230 mm tilted
Kanban 1500x1230 mm tilted
Kanban 1500x1230 mm tilted
Kanban 1500x1230 mm tilted
Ask for a quick quote *Prices are exclusive of VAT
Article code922156111


Original Flowrack type PRO+
- Kanban flow rack
- For boxes and bins
- 4, 5 or 6 levels in height
- Tilted pick side with end stop
Free
- Preassembled delivery
Long warranty period
- 5 years on the roller tracks
- 2 years on all other parts
Colour scheme choices
- Yellow (short delivery time)
- Black
Roller track choices
- Standard (box max. 20 kg)
- Heavy-duty (box max. 30 kg)
- Antistatic
Detailed info rack layout:

Detailed info lane distribution:

This article is available in various models

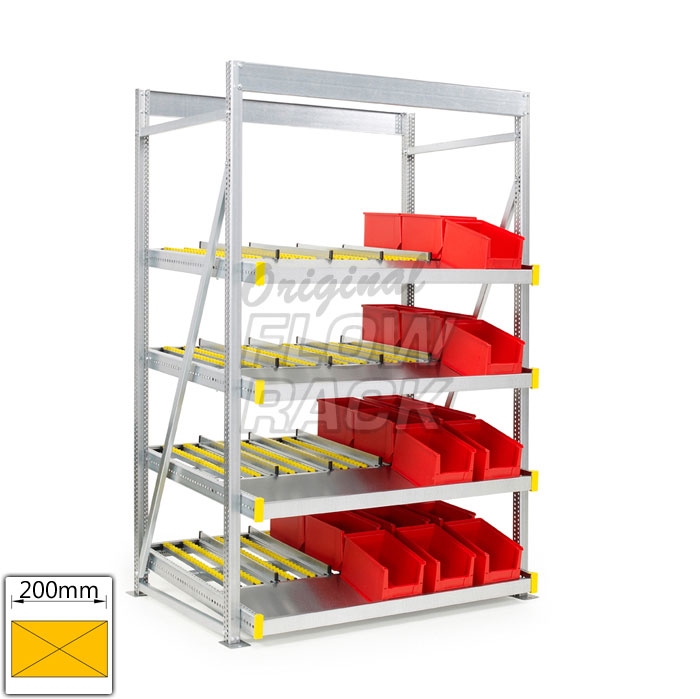

Kanban 1500x1230 mm tilted - boxes W=200mm

922152111
Ask for a quick quote

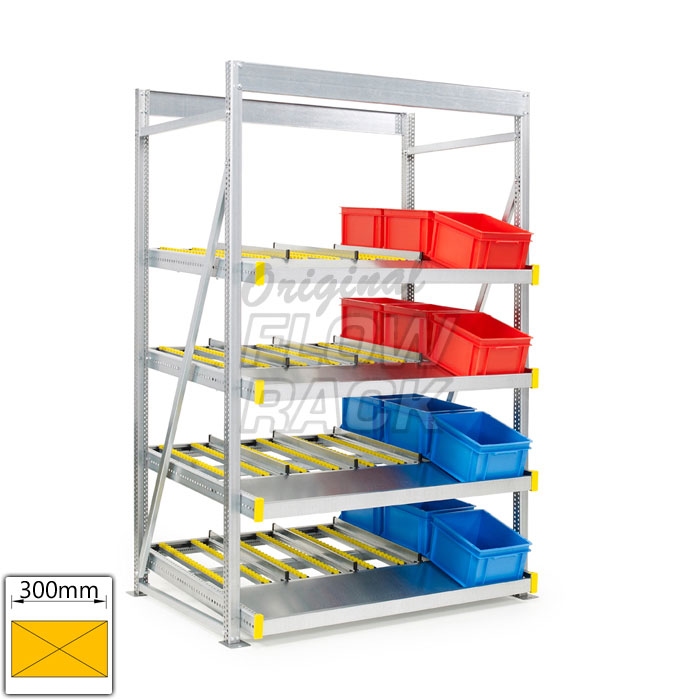

Kanban 1500x1230 mm tilted - boxes W=300mm

922153111
Ask for a quick quote

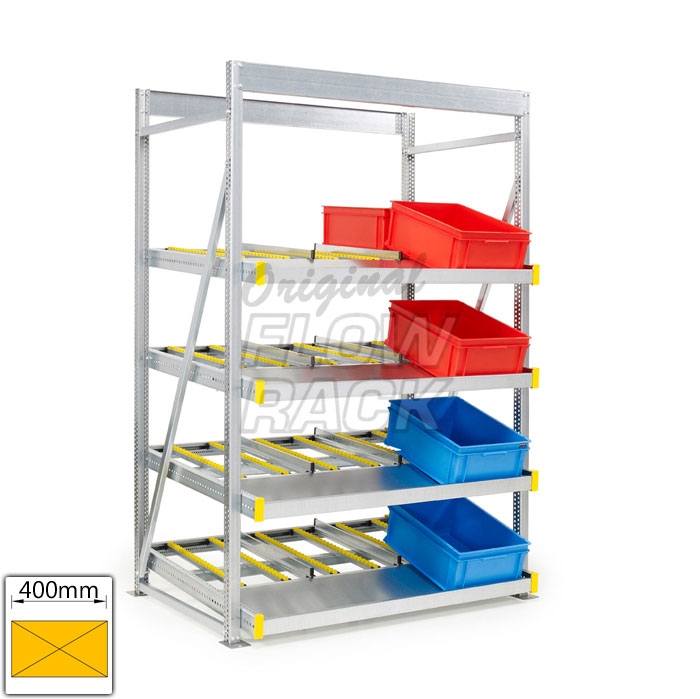

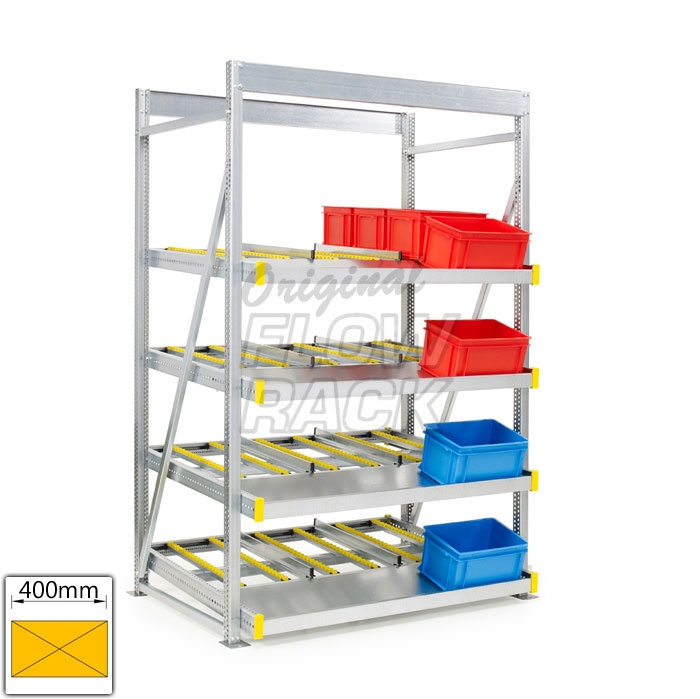

Kanban 1500x1230 mm tilted - boxes W=400mm

922154111
Ask for a quick quote

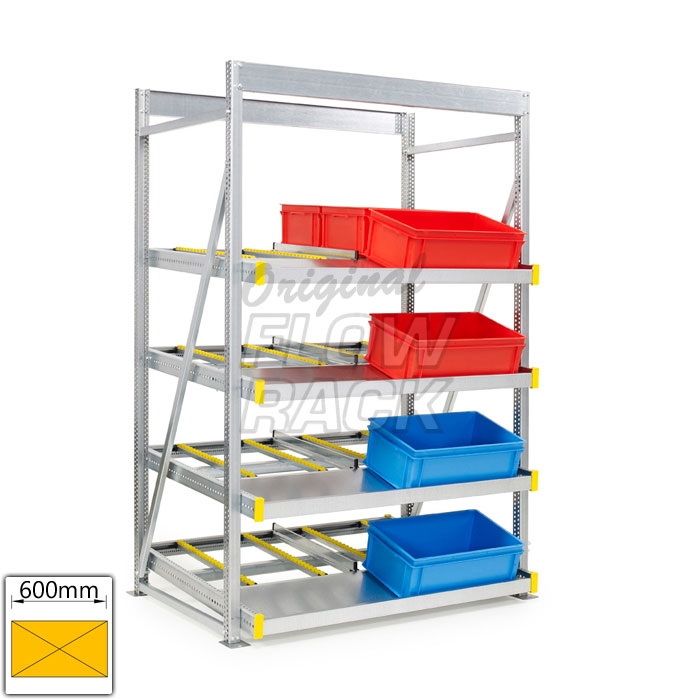

Kanban 1500x1230 mm tilted - boxes W=600mm

922156111
Ask for a quick quote

Kanban 1500x1230 mm tilted - carpet, boxes W>80mm

922159111
Ask for a quick quote

Kanban 1500x1230 mm tilted - carpet, boxes W>180mm

922151111
Ask for a quick quote


This product can be ordered for the following box or bin widths:

5 lanes
per level
4 lanes
per level
3 lanes
per level
2 lanes
per level
roller carpet
50 mm c-t-c
roller carpet
100 mm c-t-c

Description

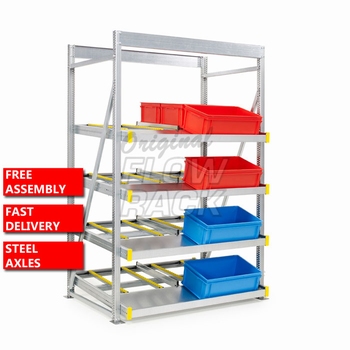

Durable stationary Flowrack kanban flow rack with tilted pick side.

Heavy and stable profiles for decades of efficient order picking.
Durable roller tracks with solid steel axles.

Dimensions and load capacity kanban flow rack

W= 1500 mm (width between posts 1390 mm).
D= 1230 mm (net storage depth 1200 mm).
H= 2304 mm.

Maximum 70 kg per lane, 300 kg per level, 1500 kg per rack (evenly divided).
Box weight up to 20 kg (standard roller tracks) or 30 kg (heavy-duty roller tracks).

Boxes and bins

The width of your boxes/bins determines the number of lanes next to each other.
These lanes each have 2 roller tracks and are separated by guide strips (whole depth).

Complete and ready-to-use due to free preassembly

1. Including upright frames.
2. Including 4 flow shelves, heights are evenly divided.
3. Including all roller tracks and guide strips for the chosen box or bin width.
4. Including all lanes: Already set to the chosen box or bin width.

Roller carpet

A roller carpet is flexible solution for use with various box and bin widths.
The roller tracks have a set centre-to-centre distance without lane division (no guide strips).

1. Roller tracks c-t-c distance of 50 mm for box and bin widths starting at 80 mm (and up).
2. Roller tracks c-t-c distance of 100 mm for box and bin widths starting at 80 mm (and up).

Available kanban flow rack versions

Choose and order your kanban flow rack based on your box or bin width.
Choose your colour scheme (yellow or black) and roller track type (standard or heavy-duty).
You would like a different setup? Let us know and we will make a quotation for you.
